Jayden's HJ Kingswood

Jayden was looking for that popular tough look on his Holden HJ Kingswood.

We fitted the Supplied Weld V-Series 15X9 wheels with 275x60r15 Mickey Thompson ET Street Tyres by removing the wheel tubs and notching the chassis rail 25mm.

Wheel tubs were extended approx. 60mm and welded ontop of the bootfloor/rail.

The boot floor was then painted to match the freshly painted wheel tubs

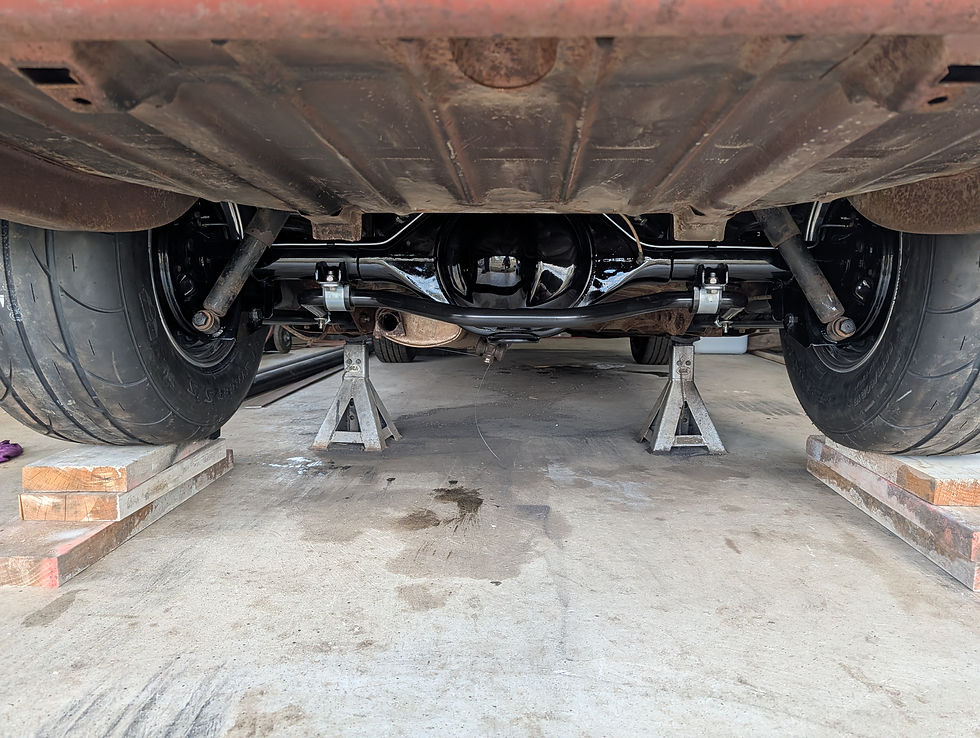

We Then installed our 35 spline 9" diff package to suit the factory Drum brakes ;

35 Spline 9" Diff Package

• Nodular Iron Twin Web Case

• Daytona Pinion Support with a 1350 yoke

• 3.9 Gears

• 35 Spline True Trac

• Billet 35 Spline Axles

HQ-HX Diff Housing

• Large Shoulder Housing

• Billet Ends to suit larger wheel bearing

• Heavy Wall Tube

• HQ-HX Diff Bracketry

• Fully Tig Welded & Painted in 2K

• New Brakelines

We fitted adjustable Mcdonald Brother Upper and Lower Arms. We also fitted a Griptech 33mm Sway bar.
